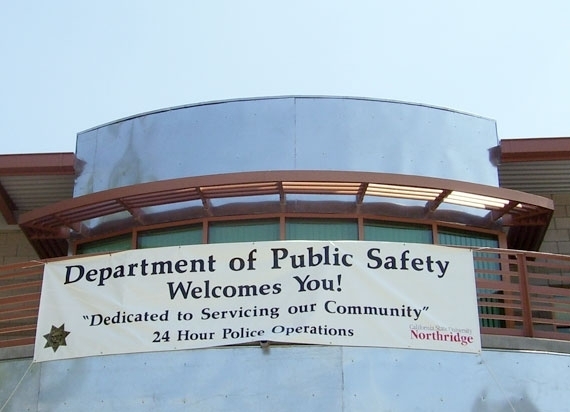

CSUN – Public Safety Facility

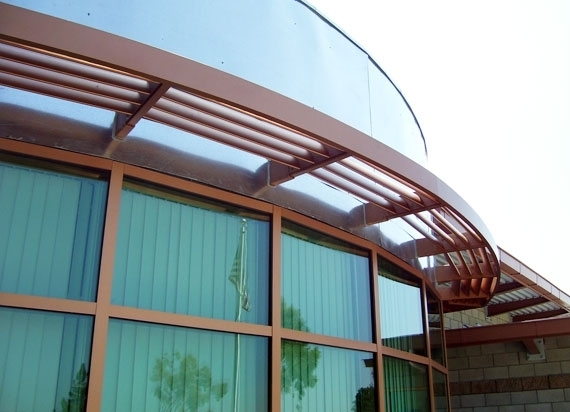

The aluminum 1-1/2″x6″ framed project illustrated here used a radius on the fascia, within which we see the 6″ extruded aluminum 6063-T5 airfoil blades, which add new dimensions. The units are supported on outriggers the same material as the radius and all attached as “extensions” from each stub out, built into the building main frame.
- Average budget: $45 – $55 / per sq.ft
- $65 – $75 / per sq.ft (curved)
- Weight: +/- 7 lbs / per sq.ft.
- Product Code:M068
- Specification: Download Here
- Shop Drawings: Download Here
- Product Type: Sunshades |
